DBW Down-Shift Blip Module
BMW – GM – Ford – Dodge – VW | Blip on downshift
Drive by Wire
Consistent downshifts rev match
Programmable throttle %
Target via USB (PC-APP) or On-board switches
Interface w/Brake
Clutch switch circuits OR Load Cell Shift knob
DBW Throttle Blip Modules
Current Supported “Production” Vehicles / Always Adding More:
2006-2013 C6 Corvette
2014+ C7 Corvette
2016+ (6th Gen) Camaro
2014-2017 Chevy SS Sedan
2001-2006 BMW 3 Series (E46)
2007+ BMW (Most models)
2012+ Mustang (excl 2017.5 if 12Vref pedal)
2013-2017 Viper (5th Gen)
2004-2006 Subaru STI
2008 MK5 VW GTI Golf

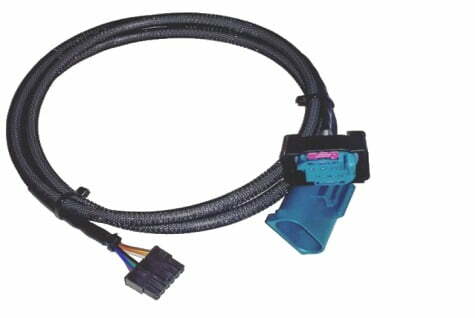

![DBW Down-Shift Blip Module Wires 1 DBW Down-Shift Blip Module Wires 1](https://6xdgearbox.com/wp-content/uploads/downshift-blip-module3.jpg)

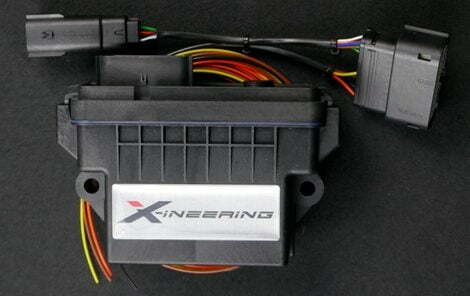

![DBW Down-Shift Blip Module DBW Down-Shift Blip Module](https://6xdgearbox.com/wp-content/uploads/dbw-throttle-blip-modules-e1574095304388.jpg)

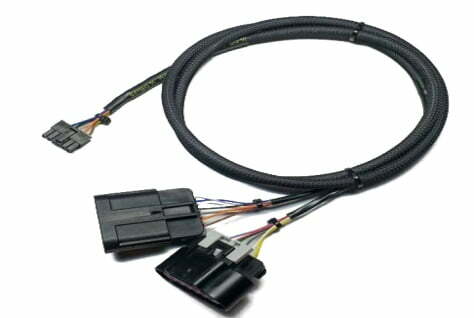

![Drive by Wire Drive by Wire](https://6xdgearbox.com/wp-content/uploads/drive-by-wire.jpg)
IN PROGRESS Production Vehicles:
C5 Corvette (1997-2004)
2017 Toyota 86
Throttle Control Description:
Connect this module in-line with OEM throttle pedal and Brake/Clutch Switch circuits OR a Load Cell Shift knob/linkage.
Upon detection of a downshift event (Brake and Clutch pressed OR Load Cell Shifter Push) the throttle is commanded to a target % to rev match the lower gear.
During the development of our WOT Shift (Ignition Cut) Module on late model Drive-By-Wire (DBW) vehicles, it became clear we needed a solution for rev matching on downshifts.
We have a very detailed understanding of DBW signals and their interactions with the ECU.
Our modules provide a plug-n-play solution for manipulating commanded throttle position electronically.
Most applications involve a sequential transmission requiring a blip during downshifts.
Interface directly in-line with the OEM APP (Accelerator Pedal Position) sensors.
This Package can be configured to trigger on any external input event.
Programmable Parameters:
- Target Throttle Blip %
- Delay after trigger for blip (ms)
- Duration of blip (ms)
- Min. time between blips (ms)
Technical Notes:
- Utilized OEM Throttle pedal connectors: Plug-n-Play
- Passive design, vehicle operates normally when switched off.
- Full telemetry via USB or set throttle % On-Board and forget it.
- Every unit end-of-line tested
- *Made in the USA
Contact Us about your vehicle platform and programmable throttle needs.
Only the Best
Award Winning Customer Service & Installation Assistance
We’re 100% committed making sure YOU are taken care of with experienced guidance and assembling!
Everything you need for a Plug n Play DBW package!
As well as everything you need for your W.O.T. (Wide Open Throttle) Module.
Effort Equals Results
6XD Your one stop shop for Race Ready SUCCESS!
![DBW Throttle Blip Module DBW Throttle Blip Module](https://6xdgearbox.com/wp-content/uploads/drive-by-wire-1.jpg)
Get the most out of your 6XD sequential gearbox by adding a DBW throttle blip module!
Clutchless Part Throttle
Downshift Wot Pull Early Shifting
